Product features and description:

Parameters for an insulated mobile garage (sandwich panel garage) with default settings:

• Width and length: 5,3×6,5m
• Roof type: gable roof with plywood cladding, class I sandwich panel (thickness: 60mm (PIR) - 100mm also available at extra charge)
• Height: minimum height 2.28m (side walls), maximum height 3m (saddle)
• Gate type: 1 insulated motorised sectional gate, 0,5m from the left side wall at the front
• Gate width and height: 2.9x2m (total clearance height: 1.9m)

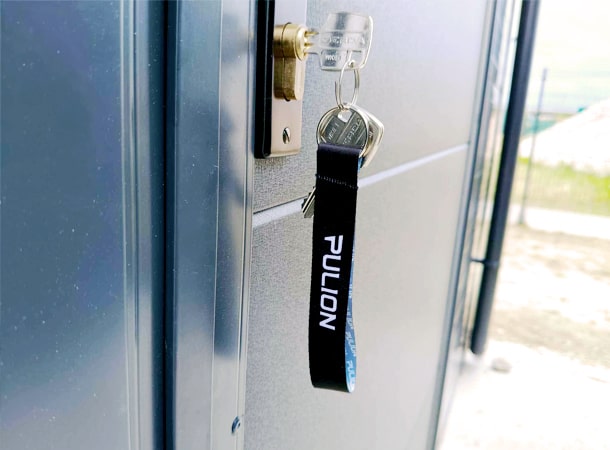

• Door type: 1 door (right-hand door, 0,9x2m, insulated, aluminium frame, wide horizontal panel covering) on the right side wall 1m from the rear wall
• Window: 1pc sash window (100x60cm, double-layer, insulated, plastic) at the back 0,2m from the right side wall
• Frame structure: galvanised, with lock-section
• Edging: on the corners and roof of the building
• Riveting: coloured rivets on the side walls in harmony with the plate cover
• Walls: class I coloured sandwich panel (thickness: 60mm (PIR) - also available in 100mm for an extra charge)
  Colours: anthracite grey 7016 (walls, gate, door) and black 9005 (roof)
• Gutters: on both sides of the roof, with rear downpipes, black
• Ventilation grille: 2pcs, grey-coloured, optionally available (these can be retrofitted with automatic ventilation system)
• Fixing: to the base prepared by the Client using a concrete pin

The insulated mobile garage (sandwich panel garage) can be modified with the following accessories in addition to the above parameter set:

• drainage bottom edging
• creating a room within the building separated by internal walls

In addition, you can of course make modifications such as changing the basic size of the sandwich panel mobile garage, the location of the windows, the colour of the cladding, the direction of the roof pitch, etc. During the request for proposal, indicate the requested modifications and additions and we will send you an e-mail with the requested changes. The order will be finalized only after the requested clarifications and acceptance of the offer.

A DELUX The price of a quality insulated mobile garage (sandwich panel garage) includes the manufacture, delivery, assembly and fixing of the building to the base prepared by you.

Insulation types:

EPS (polystyrene foam) - one of the most popular insulation materials due to its lower cost
PIR (rigid polyurethane foam) - an improved version of PUR foam

PIR insulation in a thinner form can produce as good an effect as thicker EPS insulation. It can achieve nearly 40 percent better insulation than EPS boards.
